COMPLETE SYSTEM FOR ELECTRICAL CABINETS

• CO2 or FM-200 Extinguishing Agent

• Easy / Flexible Installation

• Quick & Effective Suppression

• No electricity or moving parts

• Highly economical

Reduces even the most critical electrical fire risks:

• Combustion from short circuits, overloading or overheating

• Extensive damage to circuitry

• Work stoppage

• Extensive cleanup if sprinkler system discharges

THE FIREDETEC® DIFERENCE

FireDETEC® systems use a proprietary continuous linear sensor tube that reliably detects and actuates release of the extinguishing agent using pneumatic technology. It is flexible, space efficient and cost effective Detection Method.

1. Quick & easy Installation directly inside Electrical Cabinets:

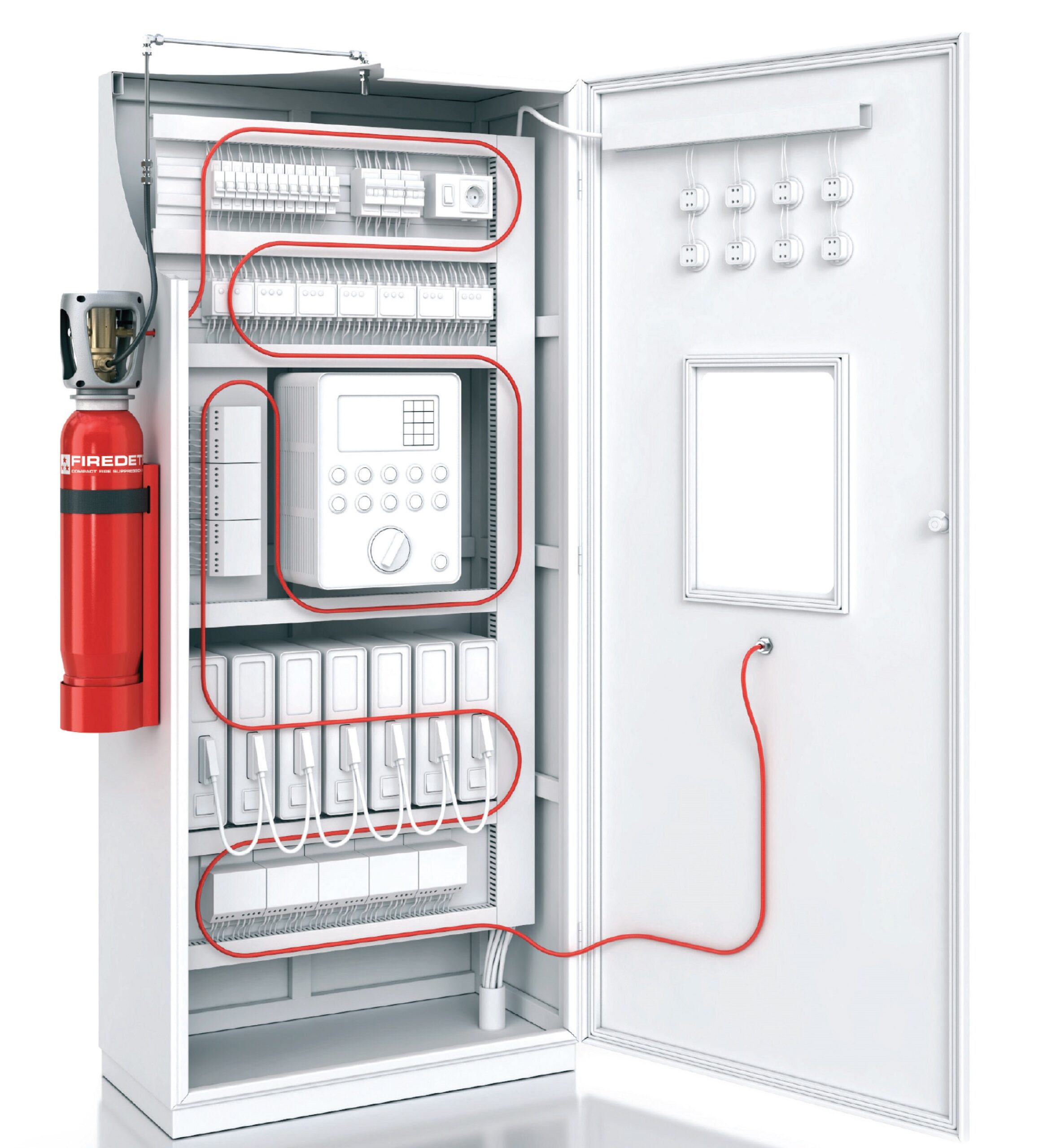

The flexible sensor tubing is easily installed inside the electrical cabinet, directly above the wires and circuity where a fire could start.When in service, the tubing is pressurized with Nitrogen at 16 bar. The dynamics of pressurization make the tubing more reactive to heat.

2. Early Fire Detection:

If a flame-up occurs, the heat of the fire causes the pressurized sensor tube to burst at the hottest spot (approx. 110°C).

3. Instant Suppression:

The sudden tube depressurization actuates the special pressure differential valve and instantly floods the entire cabinet area with CO2 or FM-200 extinguishing agent. The fire is quickly suppressed just moments after it began minimizing damage and downtime.
