Description
Fire extinguishing modules are a fast and reliable solution for fire protection in remote or hard-to-reach areas.
They are designed for installation on semi-trucks (pickups), and the configuration can be changed according to the vehicle model.
The module contains the following components:
-Water tank – Contains a large amount of water for extinguishing a fire. The tanks vary in size depending on the vehicle and the purpose of the system.
-Engine and Pump – Responsible for pumping water or fire fighting agent and ensuring that they reach the fire efficiently. It is a separate unit powered by fuel – gasoline or diesel. It can also work with a water source separate from the tank.
-Hose reel – Made of stainless steel, the reel keeps the hose conveniently coiled and ready for use. The size and length of the hose are determined according to the system requirements.
-Nozzle – allows regulation of the flow rate and the water jet – condensed and diffused
All this is compactly mounted on a self-contained platform, hot-dipped galvanized to provide maximum corrosion protection,
resistance to shocks and the weight of water during movement, with 4 rings for fastening and lifting.

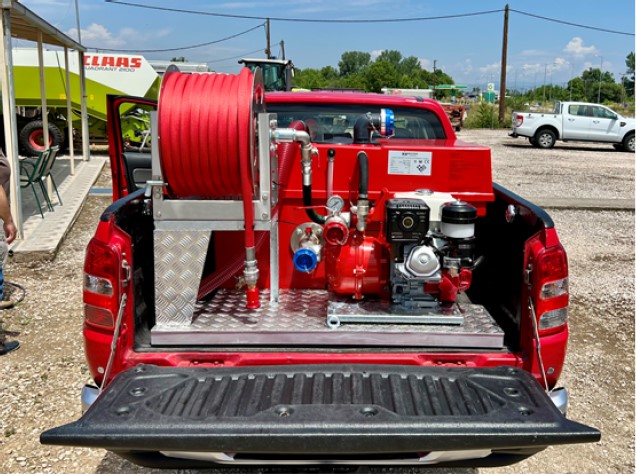

The MBK-600-12s model is standardly equipped in the following configuration:
- 600l water tank
– Made of polyester (GRP). It has a low center of gravity. Dimensions 850mm length, 1400mm width and 680mm height.
The thickness of the tank is 6 mm with reinforced areas of polyester fibers. - The engine is HONDA GX390 with the following technical characteristics:
– Gasoline single-cylinder, four-stroke with air cooling.
-Rated power (DIN 70020) 11.7HP/3600rpm.
-6.1 liter tank that provides a minimum of 2 hours of operation without charging.
-Start-stop is done with a switch (electric starter) and as a backup by pulling a rope.
-Fuel – unleaded gasoline.
- Pump with the following characteristics:
-Two-stage centrifugal type 5213HE
-Mechanical seal (carbon-ceramic).
-All parts, including the housing, are aluminum.
-Productivity at 3600rpm: 660lit/min with a pressure of 7 bar.
-Can pump water from a depth of 7 meters and at the same time extinguish or fill the tank.
-Equipped with pressure gauge.
- Hose reel
-The module has a stainless steel reel equipped with a fire hose with
length 40m and diameter 25mm, total weight 10kg, red color, with temperature resistance from -30C to +80C.,
destructive pressure 100 bar, produced in accordance with EN 694. It has an adjustable nozzle
made of brass and tough plastic with a STORZ 25 quick release, capable of firing a dense and diffuse jet.
